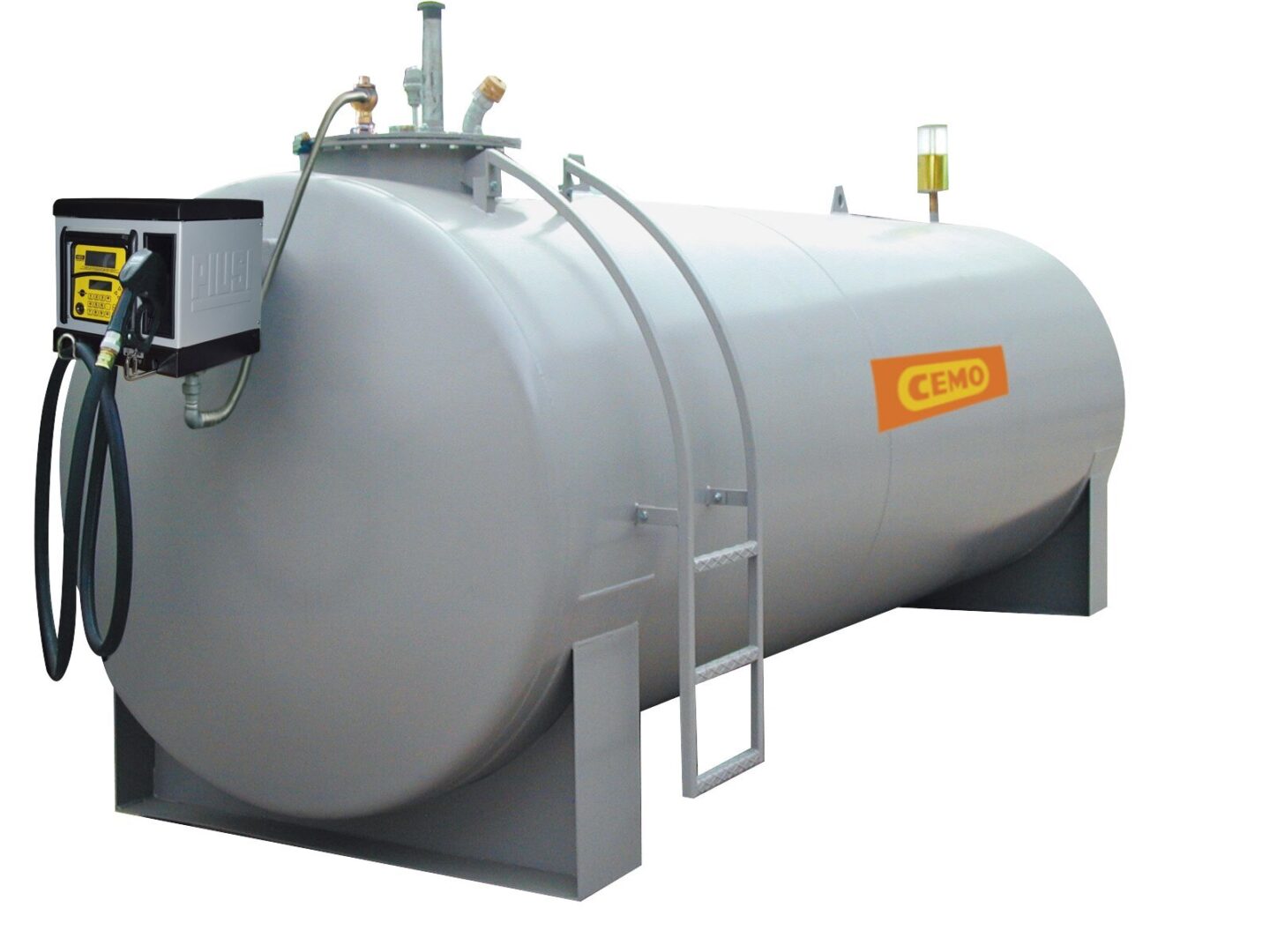

Steel tank 5000 l according to DIN EN 12285-2 with CUBE 70 MC50 - 139.0116.002

Above ground refuelling system

Steel double-wall for outdoor installation, certified for the storage of diesel fuel and biodiesel

Construction:

• Manufactured in accordance with DIN EN 12285-2 class B

• Welded on saddle feet

• Painted externally with primer and top coats

• Ladder

• Dip stick

• Extraction pipe in dome lid

• Anti-siphon device (model with mounted pump)

• Bund alarm with liquid control

• Overfill prevention sensor

• Completely assembled

• Factory test certificate

Options:

• Paint schemes according to customer specification possible (additional charge)

The standard containers are primed and painted. We offer a 10-year warranty against rusting through.

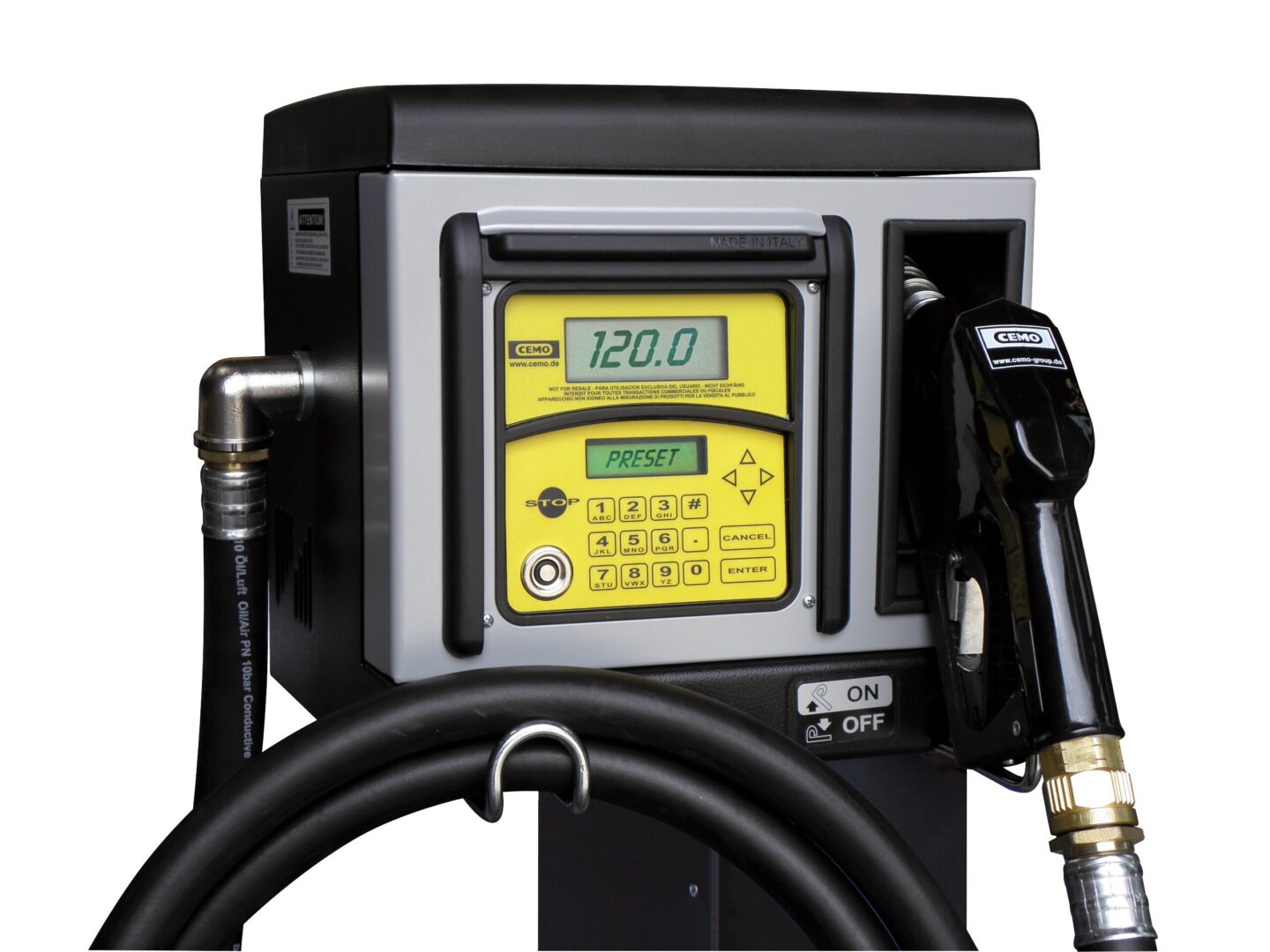

Pump CUBE 70 MC50

• self-priming

• pump dispensing volume approx. 70 L/min

• electronic flow meter with 50 user codes

• 4 m dispensing hose, automatic nozzle

• installed within a protective housing
