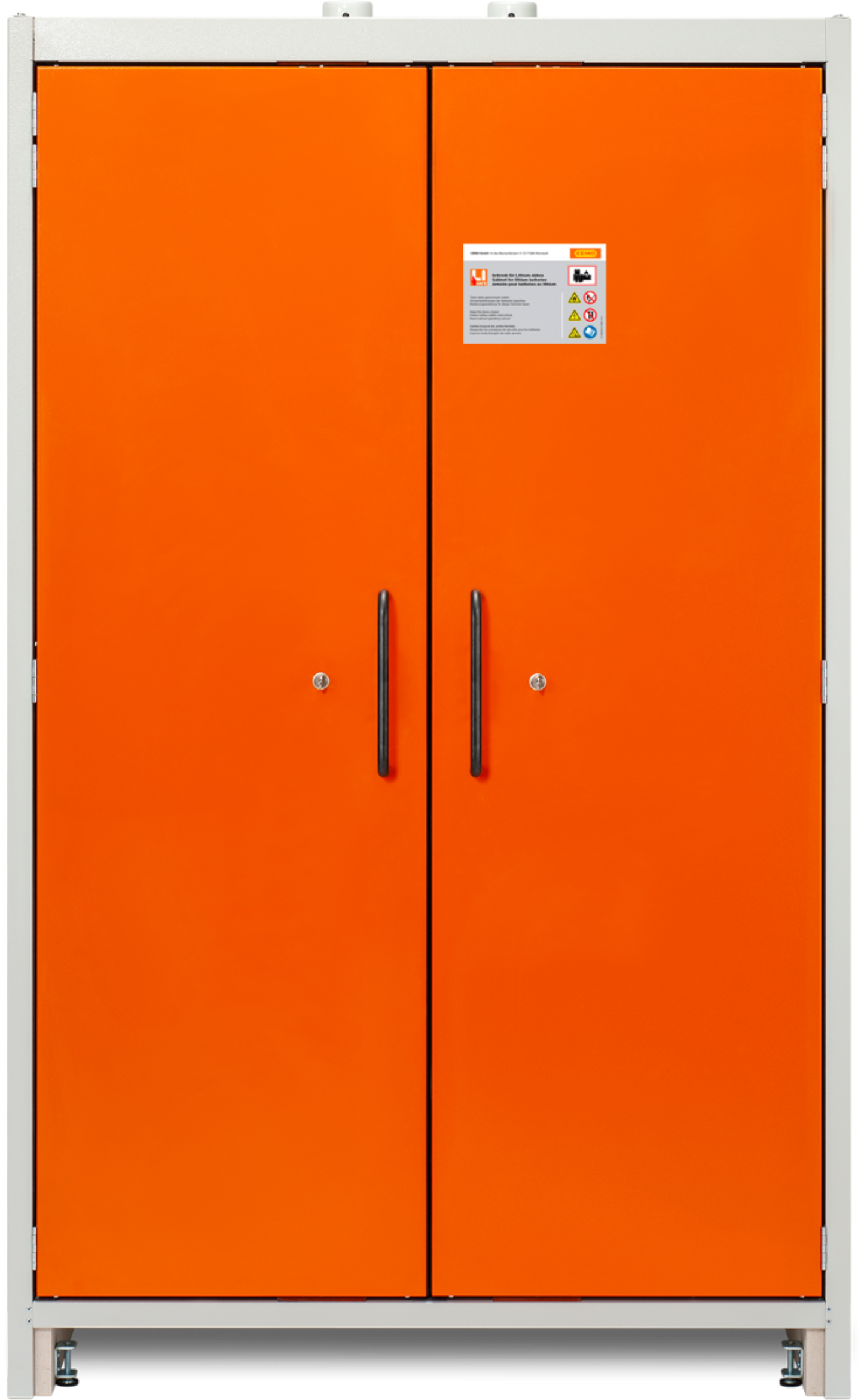

Battery safety cabinet PROline 12/20 Type 90, door orange RAL 2008 - 211.6010.201

For the storage of low-capacity lithium batteries

Complies with the newest version of DIN EN 14470-1

• 90-minute fire rating in accordance with DIN EN14470-1

• For the storage of new, low-capacity lithium batteries (<100 Wh, see VdS 3103)

• Safe 2-point locking for optimal access protection

• Locking mechanism activates when closing the doors

• Self-closing doors in the event of a fire

• Door holding in an open condition as standard

• Extra safety: load certification for fan centre of gravity on the top of the cabinet

• Height-adjustable spill tray shelves, load capacity 75 kg, grid dimension 32 mm

• For connection to technical ventilation, diameter of ventilation opening DN75

• Forkliftable, height-adjustable feet, removable base trim

• Earthing point on the outside of the cabinet to avoid ignition hazards due to electrostatic charging

• Cabinet body in grey, doors in orange (other colours on request)

• Door hinge right or left
