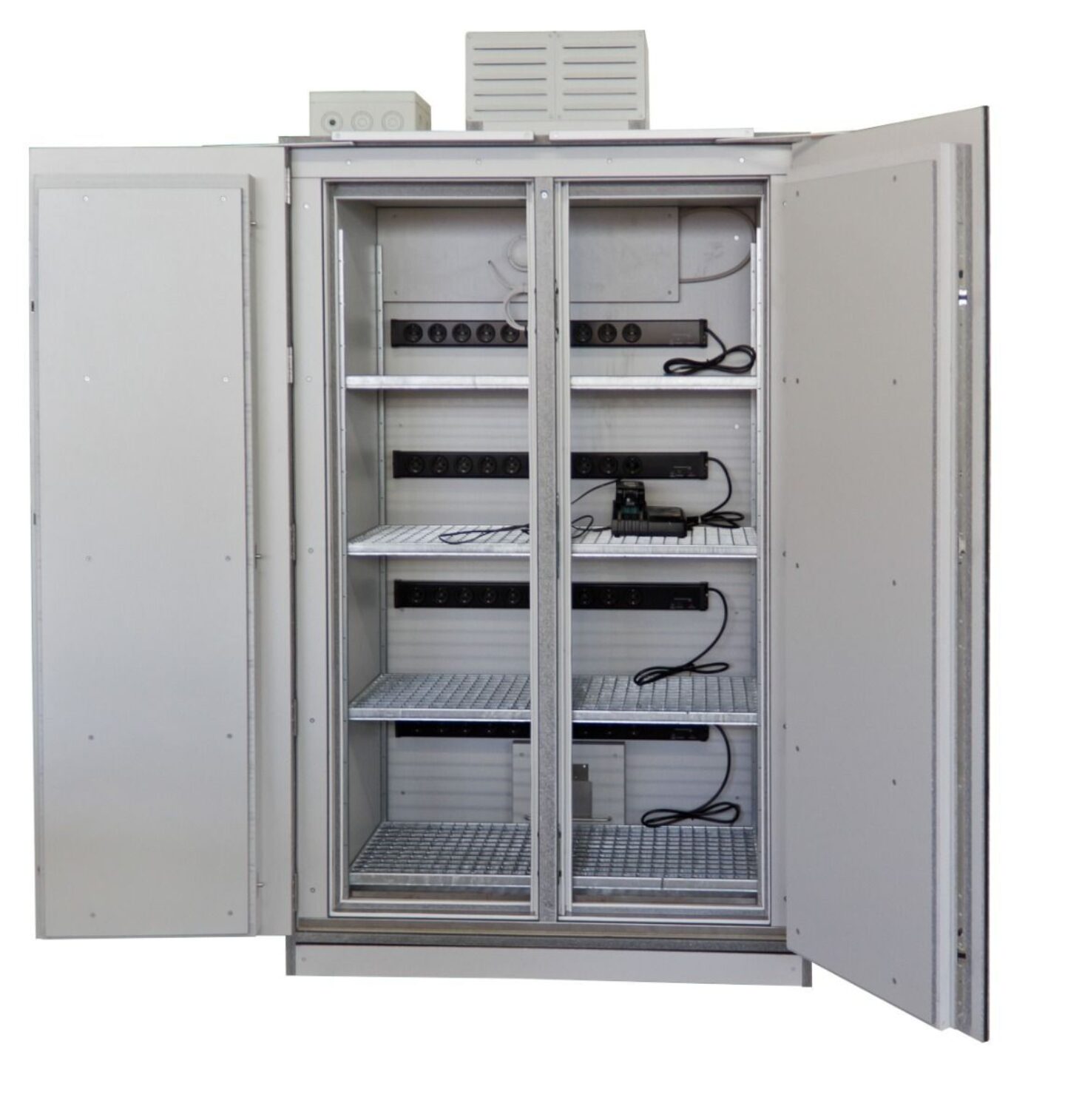

Battery charging cabinet 12/20 FWF90-GS, 4 x 10 sockets, 400 V, grey - 211.4005.049

Fire-resistant secure cabinet, specially developed for the storage and charging of lithium-ion batteries, as well as for the storage of critical batteries.

• Tested fire rating of 90 minutes from inside to outside according to DIN EN 14470-1

• Maximum temperature rise inside the cabinet of no more than 100K at any temperature measurement point

• Tested fire rating of 90 minutes from inside to outside according to DIN EN 1363-2

• GS symbol – tested as per testing principle EK5/AK4 22- 01

• Self-closing doors, tested for permanent function with profile cylinder lock

• Suitable for the storage and charging of lithium-ion batteries

• Suitable for the storage of critical batteries (detection of deformations, escape of liquids, elevated temperature greater than 40°C)

• Internal real fire test of a filled cabinet

• Standard surface in CPL light grey, similar to RAL 7035, non-flammable plate with surface treatment, classified A2 – s1, d0
